Configuring FreeDos raw disk image PXE boot over iSCSI

Prepare freedos disk image

Create 100MB raw disk image "freedos.img"
Install FreeDOS on it using QEMU
Upload it on PXE-server on /sources/iscsi directory

PXE-server kernel configuration

First of all iSCSI specific options have to be enabled in kernel:

    Device Drivers >
      SCSI device support >
         SCSI low-level drivers

    <M> iSCSI Initiator over TCP/IP [ISCSI_TCP]
    <M> iSCSI Boot Sysfs Interface  [ISCSI_BOOT_SYSFS]

    File systems >
      Pseudo filesystems

    <M>  Userspace-driven configuration filesystem  [CONFIGFS_FS]

    Device Drivers

    <M> Generic Target Core Mod (TCM) and ConfigFS Infrastructure ---> [TARGET_CORE]
       <M> TCM/IBLOCK Subsystem Plugin for Linux/BLOCK [TCM_IBLOCK]
       <M> TCM/FILEIO Subsystem Plugin for Linux/VFS [TCM_FILEIO]
       <M> TCM/pSCSI Subsystem Plugin for Linux/SCSI [TCM_PSCSI]
       <M> TCM/USER Subsystem Plugin for Linux [TCM_USER2]
       <M> TCM Virtual SAS target and Linux/SCSI LDD fabric loopback module [LOOPBACK_TARGET]
       <M> SCSI Target Mode Stack [ISCSI_TARGET]
       <M>    Chelsio iSCSI target offload driver [ISCSI_TARGET_CXGB4]
       <M> TCM Virtual Remote target [REMOTE_TARGET]

Linux kernel source tree is stored in "/usr/src/linux-*" directory.

To edit kerel options run

    make menuconfig

To build kernel run

    chimp kernel_build

To install kernel run

    chimp kernel_install

After kernel installation system should be rebooted.

PXE-server configuration

Enable and start iscsid service

systemctl enable iscsid
systemctl start iscsid

Install targetcli-ng package
If needed rebuild kernel to run iscsid and targetcli

iSCSI target configuration

open targetcli.

create link to file

cd backstores/fileio
create dos /sources/iscsi/freedos.img

create portal

cd /iscsi
create iqn.2025-08.com.umvirt.nas:freedos

create LUN

cd /iscsi/iqn.2025-08.com.umvirt.nas:freedos/tpg1/luns
create /backstores/fileio/dos

create acl

cd ../acls
create iqn.2025-08.com.umvirt.pxe

disable authentication

cd /iscsi/iqn.2025-08.com.umvirt.nas:freedos/tpg1/acls/iqn.2025-08.com.umvirt.pxe
set attribute authentication=0

save
```
cd /
saveconfig
```
exit
```
exit
```

iPXE configuration

create text file "freedos" in /srv/tftp directory:

#!ipxe
set initiator-iqn iqn.2025-08.com.umvirt.pxe
sanhook --drive 0x80  iscsi:192.168.180.254:6:3260:0:iqn.2025-08.com.umvirt.nas:freedos
sanboot --drive 0x80

Kea configuration

open /etc/kea/kea-dhcp4.conf.
replace "boot-file-name" value to "freedos"
```
"boot-file-name": "freedos"
```
restart Kea dhcp4 server
```
systemctl restart kea-dhcp4-server
```

Compute unit test launch

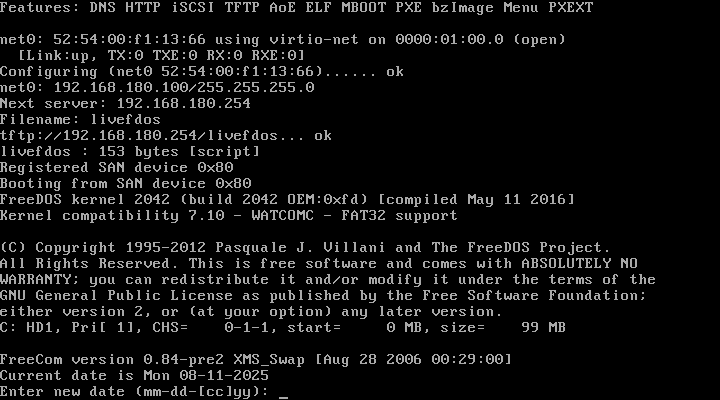

Run compute unit. On PXE boot attempt FreeDOS shold be loaded.

FreeDOS over iSCSI
